Water Type Cable Testing Machine Test Terminal Water Terminal

Name: Water Type Cable Testing Machine Test Terminal Water Terminal
Brand: HERRMAN
Price: 1 USD

Brand Name : HERRMAN

Model Number : /

Certification : CE,ISO,SGS

Place of Origin : CHINA

MOQ : 1 SET

Price : USD 1,000.00/SET - USD 100,000.00/SET

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 200 SETS/ YEAR

Delivery Time : 30 DAYS

Packaging Details : EXPORT PACKING

Name : Water Type Cable Testing Machine Test Terminal Water Terminal

Cable Type : Dry type,Water Type

Suitable material : HV cable

Distribution : Stable field

Model : 110KV Dry Type Test Terminal

Model 2 : 110KV Water Terminal

Contact Now

Water Type Cable Testing Machine Test Terminal Water Terminal

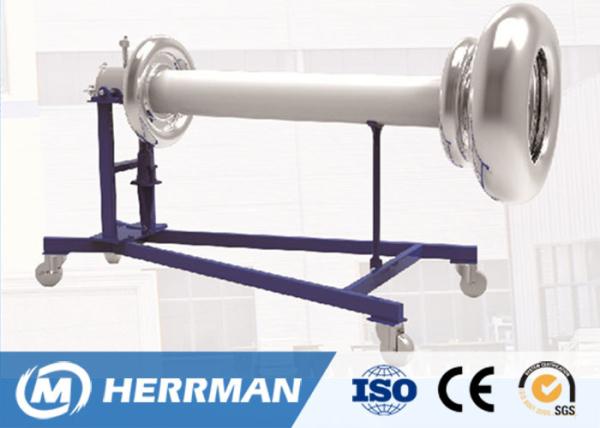

Dry type cable test termination is a new test equipment which is different from traditional water type termination.

Water type termination needs Hi-K water to get good insulation. It needs a kind of special resin to treat the deionized water. So it will cost much time on water treatment, also the water must be cooled down during test.

Dry type cable test termination combines SF6 GIS structure and cable termination, it has stable field distribution so it has no more heat during test. The good quality stress corn is made from LSR silicon rubber. Expoxy bushing has a good heat and cold resistance, also expresses good insulation during test. This new test equipment needs shorter cable than water termination, and has convenient installation.

The new test method has Chinese patent. We have generalized in more than ten domestic cable works. We will provide good products and service to HV cable works.

Water Type Cable Testing Machine Test Terminal Water Terminal
